 NC
processing, CNC lathe, Processing milling,
Homing machine, Tapping machine, Electric
discharge machine.
Spray
coating work, Applying different body
type. |
| |
 |
Available
to install in a upper location of the
machine owing to compact structure.
Easy
to maintain and repair.
Available
to replace a filter without tool.
Collecting
99.7% by triple filter. |
 |
|
|
| |
| |
| |
 |
 |
| |
| TYPE |
ZM-50 |
ZM-100 |
ZM-150 |
ZM-200 |
| POWER
SOURCE |
220/380V
3P 60Hz , 50Hz(option) |
|
BLO
WER |
Maximum Air Volume
(m©ø/min) |
10 |
15 |
20 |
25 |
|
Maximum CONSTANT PRESSURE
(mmAq) |
130 |
150 |
160 |
200 |
| MOTOR(Kw) |
0.4 |
0.75 |
1.1 |
1.5 |
| FIL
TER |
1st
FILTER (POLYESTER)
|
325
x 325 x 15
|
375
x 390 x 15
|
445
x 445 x 15
|
445
x 445 x 15 |
| 2nd
FILTER (POLYESTER)
|
325
x 325 x 15
|
375
x 390 x 15
|
445
x 445 x 15
|
445
x 445 x 15 |
| 3rd
FILTER (POLYESTER)
|
230
x 664 x 15
|
260
x 830 x 15
|
280
x 880 x 15
|
310
x 890 x 15
|
AFTER
FILTER(Option)
|
¡Ë350
X 320 H (POLYESTER CARTRIDGE) |

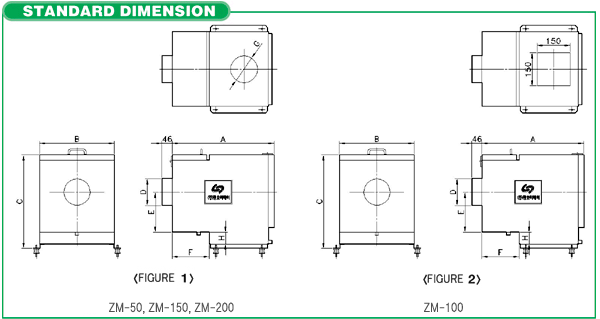

| S
I
Z
E |
A
(mm) |
465 |
515 |
620 |
650 |
| B
(mm) |
340 |
395 |
415 |
415 |
| C
(mm) |
429 |
472 |
522 |
522 |
| ØD(mm) |
125 |
150 |
200 |
200 |
| E
(mm) |
182 |
217 |
247 |
247 |
| F
(mm) |
170 |
170 |
239 |
239 |
| ØG
(mm) |
125 |
~ |
200 |
200 |
|
Approx Weight (
Kg ) |
25 |
30 |
32 |
35 |
|
Figure |
Figure1 |
Figure2 |
Figure1 |
Figure1 |
|
| |
| |
|
|
| |
|
|
