 Elimination
of lead smoke and fume in soldering
electric and electronic parts.
Elimination
of fume in laser marking and cutting.
Elimination
of reek of chemicals in school, research
institute, lab.
Elimination
of dust in grinding and carving precious
metal.
Elimination
of dust from mixer of pharmacy. |
| |
 |
Perfect
absorption of particles of fume
owing to combination of activated
carbon fiber filter and granular
activated carbon.
Extension
of expected life of activated
carbon filter in adoption of triple
filter, perfectly collecting 99.997%
of minute particles over 0.3§.
Equipment
on the table is available due
to beautiful shape and compact
size.
Silent
operating from perfect anti-noise
measure. |
 |
|
|
|
| |
| |
| |
 |
 |
| SIZE |
ZF-
100 |
ZF-
300 |
ZF-
500 |
| POWER
SOURCE |
220V
1P AC 60Hz |
|
BLOWER |
VOLUME OF WIND (m©ø/min) |
2.5 |
4 |
8
|
|
CONSTANT PRESSURE (mmAq) |
26 |
40 |
68
|
| MOTOR(Kw) |
60
W |
220
W |
500
W |
| 1st
FILTER |
PRE
FILTER (305 x 305 x 20) |
| 2st
FILTER |
H.E.P.A
FILTER (305 x 305 x 75) |
| 3st
FILTER |
MAT
+ GRANULAR ACTIVE CARBON |
| SIZE |
A(mm) |
370 |
460 |
525 |
| B(mm) |
322 |
322 |
322 |
| C(mm) |
316 |
316 |
346 |
| ØD(mm) |
65 |
65 |
65 |
| MULTI-REFRACTIVE
HOSE |
Ø65
x 800L x 1 |
Ø65
x 1000L x 1 |
Ø65
x 1000L x 1 |
| WEIGHT
(kg) |
10 |
12 |
20 |
| SOUND
LEVEL DB(A) |
35±2 |
48±2 |
55±2 |

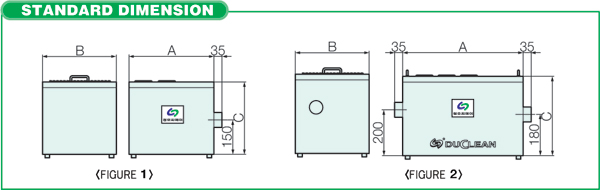

| FIGURE |
FIGURE1 |
FIGURE2 |
|
| |
| |
|
|
| |
|
|
