Elimination of lead smoke and fume
in soldering, Elimination of fume in
laser marking and cutting, Elimination
of reek of chemicals in school, research
institute, lab, Elimination of dust
in grinding and carving precious metal,
Elimination of shaped dust, Elimination
of dust from mixer of pharmacy |
| |
 |
 Available
to arrange in a small area of the factory
owing to compact structure
Convenience
to move out/in
Perfectly
collecting 99.997% of minute particles
over 0.3§
Quiet
operating built in practical structure
High
efficiency and light weight
Easy
management and exchange with adoption
media type filter |
|
|
| |
| |
| |
 |
 |
| SIZE |
ZB-100 |

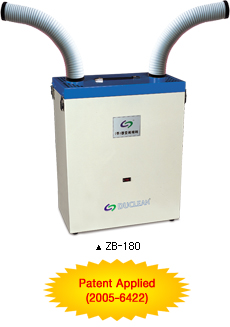

ZB-180 |
ZF-700 |
| POWER |
220V
1P 60Hz |
|
BLOWER |
VOLUME OF WIND (m©ø/min) |
5.7 |
5.7 |
14 |
|
CONSTANT PRESSURE (mmAq) |
78 |
78 |
81 |
| MOTOR(Kw) |
180W
x 2P |
180W
x 2P |
520W
x 20P |
| SOUND
LEVEL DB (A) |
40±2 |
45±2 |
53±2 |
| 1st
FILTER |
HEPA
FILTER |
| 2nd
FILTER |
ACF
FILTER |
| SIZE |
A
(mm) |
335 |
460 |
460 |
| B
(mm) |
250 |
250 |
250 |
| C
(mm) |
610 |
610 |
610 |
| ØD
(mm) |
Ø63 |
Ø63
x 2EA |
Ø63
x 2EA |
| ANACLASTIC
HOSE (mm) |
1,000 |
1,000
x 2EA |
1,000
x 2EA |

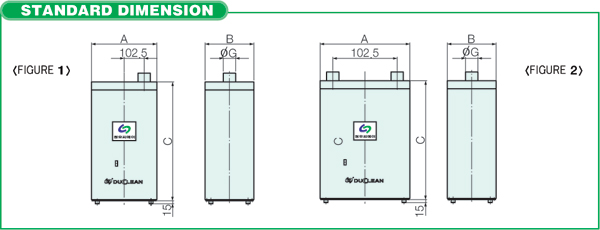

| FIGURE |
FIGURE1 |
FIGURE2 |
|
| |
| |
|
|
| |
|
|
