Sander Processing for carpentry shop, metal shop and air sander.
Polish processing for car, painting and surface sander.
Cement grinding, Floor grinding.

Superior absorption power.
Build in cartridge filter that is easy to treatment.
Easy to replace the filter without tool, and to dust off by Shaking Lever.
Available to use the frequency with a combined use by adapting a combined use of motor for both 50Hz and 60Hz.
Build in cooling Fan.(No heating due to cooling fan designed by ourselves)
Build in electronic board with soft touch type.

¡Ø Purchase Air sander itself separately ( Compressor Connected Type )


TYPE
SC-50VSM/H
POWER SOURCE
220V 1P AC 50Hz, 60Hz
BLOWER
VOLUME OF WIND (m©ø/min)
2.7 / 2.3
CONSTANT PRESSURE (mmAq)
2400
MOTOR(Kw)
1.2 (1.6HP)
FILTER
SIZE
SIZE (WxLxH)
435 x 600 x 93
FILTRATION SIZE (m©÷)
1.42
MATERIALS
CARTRIDGE TYPE (POLYESTER)
NON-WOVEN FABRIC
TYPE OF AUTOMATICS AIR PULSE

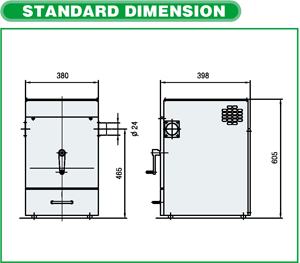

SIZE (W x L x H)
380 x 398 x 605
SUCTION PORT (mm)
Ø63.5
CAPACITY OF DUST BOX (§¤)
6.5
WEIGHT (kg)
35
SOUND LEVEL (DB)
68
