| Machining center, automatic lathe,
processing milling, homing machine,
tapping machine, electric discharge
machining, spray coating work, applying
different body type |
| |
 |
 Perfect
collecting from mist to fume by triple
filter.
In
adoption of H.E.P.A FILTER, perfectly
collecting 99.997% of minute particles
over 0.3§.
Adopted
slide type of filter and easy to change.
Centralized
intensive handling is available. It
can integrate many machines of making
fume to one place by its huge capacity. |
Function
of elimination of fume is available
to be added to. (Option)
- Activated carbon fiber filter
is activator that consists of
high molecular compound. It has
high absorption ratio and strength,
and doesn't make secondary pollution
because of not easily weathering.
It is highly acid -resistant and
alkali-tolerant, and lasts long
- H.E.P.A. FILTER for adherent
LIFTER is attached to OMC-750~1500
TYPE. |
 |
|
|
|
| |
| |
| |
 |
 |
| TYPE |
OMC-100 |
OMC-200 |

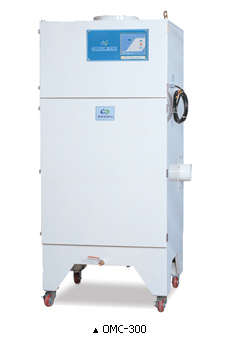

OMC-300 |
OMC-500 |
OMC-750 |
OMC-1000 |
OMC-1500 |
| POWER
SOURCE |
220V 1P AC, 220 / 380V
3P ACHz |
220V 1P AC, 220V/380V
3P 60Hz, 440V(Option), 50Hz(Option) |
|
B
L
O
W
E
R |
VOLUME OF
WIND (m©ø/min) |
12 |
25 |
40 |
60 |
80 |
100 |
150 |
|
CONSTANT
PRESSURE (mmAq) |
230 |
230 |
230 |
230 |
250 |
250 |
250 |
| MOTOR(Kw) |
0.75 |
1.5 |
2.2 |
4.0 |
5.5 |
4.0
X 2 |
5.5
X 2 |
| F
I
L
T
E
R |
1st
PRE FILTER
|
610x610x
50 |
610x610x
50 |
760x610x
50 |
760x610x
50 |
610x610x
50x2 |
760x610x
50x2 |
760x610x
50x2 |
| 2st
VEEBAG FILTER
|
610x610x
560x10
POKET |
610x610x
560x10
POKET |
760x610x
560x12
POKET |
760x610x
560x12
POKET |
610x610x
560x10
POKETx2 |
760x610x
560x12
POKETx2 |
760x610x
560x15
POKETx2 |
| 3st
H.E.P.A FILTER
|
610x610x
75 |
610x610x
150 |
760x610x
150 |
760x610x
292 |
610x610x
292x2 |
760x610x
292x2 |
760x610x
292x2 |
| S
I
Z
E |
A
(mm) |
670 |
670 |
820 |
820 |
1,344 |
1,650 |
1,650 |
| B
(mm) |
670 |
670 |
820 |
820 |
900 |
950 |
1,000 |
| C
(mm) |
1,375 |
1,515 |
1,680 |
1,860 |
2,055 |
1,990 |
2,050 |
| ØD(mm) |
150 |
200 |
250 |
250 |
300 |
350 |
400 |
| E
(mm) |
240 |
215 |
260 |
260 |
275 |
275 |
275 |
| F
(mm) |
345 |
295 |
660 |
660 |
640 |
635 |
625 |
| ØG
(mm) |
150 |
200 |
300 |
300 |
350 |
400 |
450 |
| H
(mm) |
128 |
128 |
128 |
128 |
160 |
160 |
160 |
|
ROUGH WEIGHT(
Kg ) |
120 |
165 |
280 |
305 |
680 |
710 |
760 |
|
FIGURE |
FIGURE1 |
FIGURE2 |
|
| |
| |
|
|
| |
|
|
