Structure
of minimized cause for dust explosion

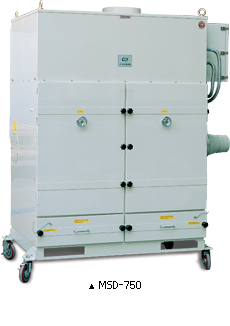

MSD SERIES is an anti dust explosion
safe type dust collector, adopting anti
static rectangular bag filter and manual
shaking dust off. It can prevent making
flame in dust collector by anti dust
explosive MOTOR, exterior airtight anti
dust explosive electric equipment box.
anti-dust
electric equipment BOX
Leakage of flame is prevented with SEAL
PACKING
anti-backfire
valve
In case of dust explosion in dust collector,
preventing fire from diffusing into
DUCT, it can protect workers from fire
storm.
anti-storm
diffusive hole
In case of dust explosion in dust collector,
power of explosion may burst the main
body of dust collector, and it may cost
many lives.
So APD SERIES can minimize the damage,
absorbing energy of explosion and then
inducing and discharging it backward
and upward. |
 |
|
|
| |
| |
| |
 |
| |
 |
| TYPE |
MSD-100 |
MSD-200 |
MSD-300 |
MSD-500 |
MSD-750 |
MSD-1000 |
MSD-1500 |
| POWER
SOURCE |
220 / 380V 3P AC 60Hz,
440V(Option), 50Hz(Option) |
|
B
L
O
W
E
R
|
VOLUME
OF WIND
(m©ø/min) |
12 |
25 |
40 |
60 |
80 |
100 |
150 |
|
CONSTANT
PRESSURE
(mmAq) |
230 |
250
|
|
MOTOR(Kw) |
0.75 |
1.5 |
2.2 |
3.7 |
5.5 |
3.7
X 2SET |
5.5
X 2SET |
| B
A
G
F
I
L
T
E
R |
SIZE (WxL) |
420
x 600 |
640
x 650 |
|
QUANTITY (Poket) |
7 |
14 |
15 |
20 |
30 |
40 |
50 |
|
FILTRATION
SIZE (m©÷) |
3.6 |
7.1 |
12.5 |
16.7 |
25 |
33 |
42.5 |
|
MATERIALS |
ELECTRIC
CHARGE PREVENTION TREATMENT
POLYESTER NON-WOVEN FABRIC
|
|
SHAKING DUST OFF |
HAND
SHAKING |
| S
I
Z
E |
A
(mm) |
520 |
620 |
750 |
750 |
1,200 |
1,500 |
1,800 |
| B
(mm) |
520 |
620 |
750 |
750 |
750 |
750 |
850 |
| C
(mm) |
1,260 |
1,380 |
1,577 |
1,577 |
1,747 |
1,587 |
1,747 |
| ¨ªD
(mm) |
150 |
200 |
250 |
250 |
300 |
350 |
400 |
| E
(mm) |
160 |
190 |
225 |
225 |
200 |
200 |
205 |
| F
(mm) |
627 |
627 |
750 |
750 |
450 |
592 |
610 |
| ¨ªG
(mm) |
150 |
200 |
300 |
300 |
350 |
400 |
450 |
| H
(mm) |
100 |
150 |
200 |
200 |
200 |
200 |
200 |
| I
(mm) |
128 |
128 |
128 |
128 |
160 |
160 |
160 |
|
CAPACITY OF DUST BOX (
l ) |
16 |
23 |
65 |
65 |
100 |
130 |
130 |
|
ROUGH WEIGHT (
Kg ) |
115 |
150 |
190 |
220 |
380 |
430 |
480 |
|

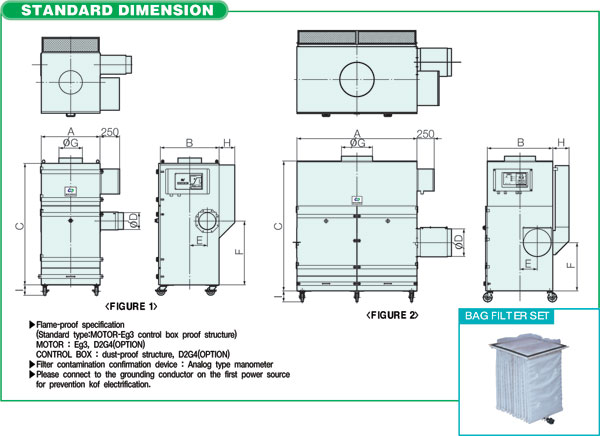

FIGURE
|
FIGURE1 |
FIGURE2 |
|
| |
|
|
| |
|
|
