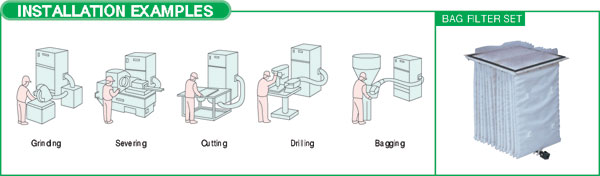

 Grinding
, bagging, inputting powder, sandpapering,
severing, drilling, cutting, mixing,
acryl processing, crashing, cutting
cast iron ware |
| |
 |

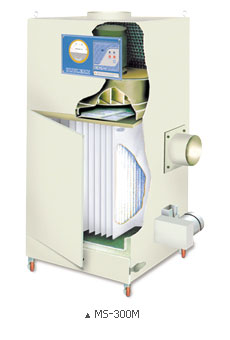

TURBO
BLOWER
Realixed vibration-free and low-noise
as increasing absorption power
with decreasing, weight and starting
load on account of applying the
demestic beginning of electronic
balancing
CONTROL
PANEL
Enhanced acknowledgement quality
owing to integrating on -off switch
and manometer by centralized intensive
method. |
|
|
MANOMETER
( AUTOMATIC TYPE ATTACHED )
- Noticing the situation of filter in
collecting dust.
- Noticing the time of shaking dust
off and changing filter
FILTER
- Available to collect minute dust due
to large face of filter adopting rectangular
plain surface.
- Possible to adopt various filters
suitable for character of dust
- Easily changable, compact one bodied
type
TYPE
OF SHAKING DUST OFF
- Automatic( M type ) : Silent and powerful
Automatic Vibration builds-in timer,
if pushing the starting button, it would
efficiently shake dust off soon and
be free from damage of device by long
time use.
- Manual( H type): Shake 'SHAKING HANDLE'
to eliminate dust. This type shall be
free from being out of order and economical.
DUST
BOX
' Dust Box ' under the Dust Collector
is easy to collect dust as easily changeable
sliding type. |
 |
|
|
| |
| |
| |
 |
| |
 |
| |
 |
| TYPE |
MS-50 |
MS-100 |
MS-200 |
MS-300 |
MS-500 |
MS-750 |
MS-1000 |
MS-1500 |
| POWER
SOURCE |
220V
1P, 220/380 3P
440V(Option)50Hz(Option) |
220V/380V
3P 60Hz, 440V(Option). 50Hz(Option) |
|
BLOWER |
VOLUME
OF WIND
(m©ø/min) |
7 |
12 |
25 |
40 |
60 |
80 |
100 |
150 |
| CONSTANT
PRESSURE
(mmAq) |
250 |
230 |
250 |
| MOTOR(Kw) |
0.75 |
0.75 |
1.5 |
2.2 |
4.0 |
5.5 |
4.0
X 2SET |
5.5
X 2SET |
| BAG
FILTER |
SIZE
(WxL) |
420
x 200 |
420
x 600 |
640
x650 |
| QUANTITY
(Poket) |
8 |
7 |
14 |
15 |
20 |
30 |
40 |
50 |
| FILTRATION
SIZE (m©÷) |
1.6 |
3.6 |
7.1 |
12.5 |
16.7 |
25 |
33 |
42.5 |
| MATERIALS |
POLYESTER
NON -WOVEN FABRIC |
| SHAKING
DUST OFF |
MANUAL |
MANUAL/MOTOR
VIBRATION |
| ±â°èÅ©±â
SIZE
|
A
(mm) |
450 |
520 |
620 |
750 |
750 |
1,200 |
1,500 |
1,800 |
| B
(mm) |
520 |
520 |
620 |
750 |
750 |
750 |
750 |
850 |
| C
(mm) |
755 |
1,260 |
1,380 |
1,577 |
1,577 |
1,747 |
1,587 |
1,747 |
| ¨ªD(mm) |
100 |
150 |
200 |
250 |
250 |
300 |
350 |
400 |
| E
(mm) |
180 |
160 |
190 |
225 |
225 |
200 |
200 |
205 |
| F
(mm) |
280 |
627 |
627 |
750 |
750 |
450 |
592 |
610 |
| ¨ªG
(mm) |
125 |
150 |
200 |
300 |
300 |
350 |
400 |
450 |
| H
(mm) |
68 |
128 |
128 |
128 |
128 |
160 |
160 |
160 |
| SHAKING
MOTOR |
- |
0.2kw
x 1set |
0.2kw
x 2set |
| CAPACITY
OF DUST BOX ( l ) |
9 |
16 |
23 |
65 |
65 |
100 |
130 |
130 |
| ROUGH
WEIGHT ( Kg ) |
50 |
100 |
135 |
180 |
190 |
320 |
380 |
450 |

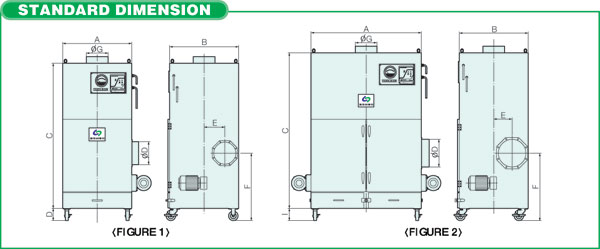

| FIGURE
|
FIGURE
1 |
FIGURE
2 |
|
| |
|
|
| |
|
|
