Ultra-minute dust, Semi-conductor
element
FUME occurring machine |
| |
 |
 HEPA
FILTER is attached to collect over 99.997%
of dust in particle-size 0.3§.
Applied
to SUPER CLEAN ROOM from CLASS 1 to
10.
Available
to apply VLSI manufacturing factory,
CLEAN BENCH, gene laboratory, space
aviation field.
Fume
like welding smoke can be eliminated.
No
gas leakage owing to LIFTER for adherence
to filter attached to all kinds of machine.
Function
of elimination of fume is available
to be added to. |
Smell
Removal Function (Option)
The Activated Carbon Fiber Filter
is an activator made of Polycrystalline,
High-Polymerized compound. It
has high-absorption and powerful,
and prevent from 2nd pollution.
And, it has strong acid-resistance
and alkali-resistance in addition
to long- life. |
 |
|
|
|
| |
| |
| |
 |
 |
| TYPE |
MDC-100 |
MDC-200 |
MDC-300 |
MDC-500 |
MDC-750 |
MDC-1000 |
MDC-1500 |
| BLOWER |
220V
1P AC, 220 / 380V 3P AC 60Hz |
220 / 380V 3P AC 60Hz
440V(Option) 50Hz(Option) |
|
B
L
O
W
E
R |
VOLUME OF
WIND (m©ø/min) |
12 |
25 |
40 |
60 |
80 |
100 |
150 |
|
CONSTANT
PRESSURE (mmAq) |
230 |
230 |
230 |
230 |
250 |
250 |
250 |
|
MOTOR
(Kw) |
0.75 |
1.5 |
2.2 |
4.0 |
5.5 |
4.0
X 2 |
5.5
X 2 |
| F
I
L
T
E
R |
1st
FILTER |
VEEBAG
FILTER ( GLASS FIBER 95%) |
| 2st
FILTER |
H.E.P.A
FILTER / U.L.P.A FILTER
MICRO GLASS FIBER 99.999997%) |
| S
I
Z
E |
A
(mm) |
670 |
670 |
820 |
820 |
1,344 |
1,650 |
1,650 |
| B
(mm) |
670 |
670 |
820 |
820 |
900 |
970 |
970 |
| C
(mm) |
1,335 |
1,530 |
1,670 |
1,810 |
1,960 |
1,970 |
1,910 |
| ØD
(mm) |
150 |
200 |
250 |
250 |
300 |
350 |
400 |
| E
(mm) |
205 |
205 |
260 |
260 |
275 |
365 |
340 |
| F
(mm) |
330 |
330 |
665 |
480 |
545 |
600 |
600 |
| ØG
(mm) |
150 |
200 |
300 |
300 |
350 |
400 |
450 |
| H
(mm) |
128 |
128 |
128 |
128 |
160 |
160 |
160 |
| CAPACITY
OF
DUST BOX (ℓ) |
25 |
25 |
50 |
50 |
55
x 2 |
85
x 2 |
85
x 2 |
| ROUGH
WEIGHT (㎏) |
130 |
180 |
295 |
360 |
680 |
850 |
970 |

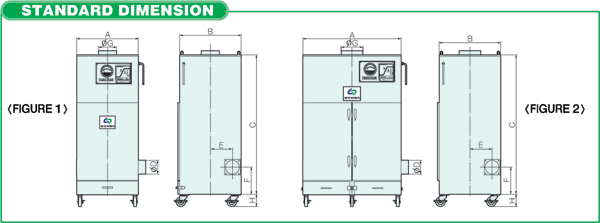

| FIGURE |
FIGURE1 |
FIGURE2 |
|
| |
| |
|
|
| |
|
|
