| Laser cutting, marking, soldering
Lab of chemistry and medicine, research
institute, assembly line of electric
and electronic parts |
| |
 |
 Compact
size of optimal design is suitable
for small space.
Adopted
slide type is easy to change the
filter.
Long
lasting and high efficiency is
owing to combination of activated
carbon fiber filter and granular
activated carbon.
Epoch-making
extension of expected life of
carbon filter is on account of
triple filter structure, collecting
minute dust. |
|
|
|
|
| |
| |
| |
 |
 |
| TYPE |
LC
- 50 |
LC
- 100 |
LC
- 200 |
| POWER
SOURCE |
220V
1P AC, 220 / 380V 3P AC 60Hz, 440V(Option),
50Hz(Option) |
|
BLO
WER |
VOLUME OF WIND (m³/min) |
7 |
12 |
25 |
|
CONSTANT PRESSURE (mmAq) |
250 |
230
|
230 |
| MOTOR(Kw) |
0.75 |
0.75 |
1.5 |
| 1st
PRE FILTER |
400x500x20
|
610x610x20 |
610x610x20 |
| 2st
FILTER |
400x500x50
CARTIRIDGE |
610x610x75
HEPA |
610x610x150
HEPA |
| 3st
CARBON FILTER |
400x500x50Hx2 |
610x610x50Hx2 |
610x610x50Hx4 |
| S
I
Z
E |
A
(mm) |
450 |
670 |
670 |
| B
(mm) |
500 |
670 |
670 |
| C
(mm) |
705 |
895 |
1,195 |
| ØD(mm) |
100 |
150 |
200 |
| E
(mm) |
0 |
235 |
120 |
| F
(mm) |
70 |
132 |
162 |
| ØG
(mm) |
100 |
200 |
200 |
| H
(mm) |
68 |
128 |
128 |
|
WEIGHT (
Kg ) |
65 |
105 |
180 |
|

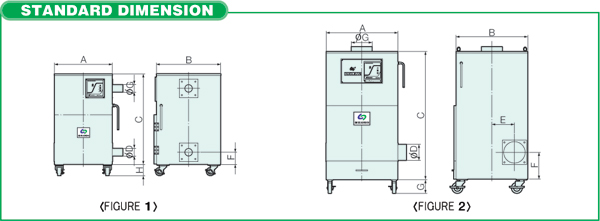

FIGURE |
FIGURE1 |
FIGURE2 |
|
| |
| |
|
|
| |
|
|
