Metal and machinery manufacturing factory occurring chips, all kinds of dust of industrial field, eliminating minute dust in factory, dust and pebble powder of construction field, goods warehouse, flour factory, chemical factory, and other manufacturing factory.

This Model Series that THREE MOTORs are attached to, has a strong absorption power. And this cleaner series is attached two separate tanks.
The first dust collector tank collects heavy dust, and the second tank collects light dust. CASTER attached to tank is convenient to dump dust.
This model, attached Dry/Wet MOTORs, has a wide working place in application scope.



Product
Power
Motor
Vacuum Level
Caficity
External Size
Weight
Materials

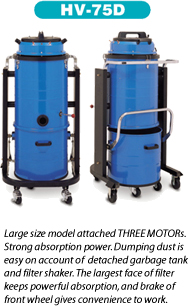

HV-75D
220V/1P
(50/60Hz)
1,200W x 3 /
4.8HP
(Dry / Wet)
2,700mmAq
75L
740x740x1,530
73Kg
STEEL

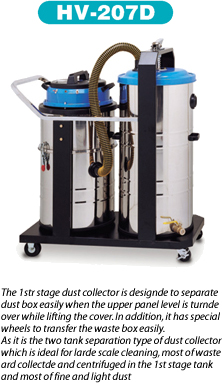

HV-207D
2,800mmAq
207L
560x1,150x1,160
66Kg
SUS/STEEL
HV-1000D
2,700mmAo
104L
700x1,120x1,100
62Kg
SUS

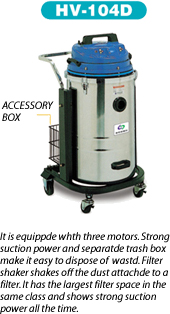

HV-104D
2,700mmAq
104L
650x720x1,100
44kg
SUS
