One
Bodied Grinder and Dust Collector
One bodied grinder and dust collector
can easily collect dust.
Simple
Design
Simple design gives beautiful shape.
PRE
DUSTER Built-in
PRE DUSTER(flame sinking set) built-in
prevents fire.
|
Large
Size Vibration-proof Rubber Attached
size vibration-proof rubber which
self-absorbs the vibration of
grinder enables silent operation.
Silencer
Built-in
Silencer built-in makes low-noise.
|
 |
Electronic
Panel
Excellent the function of against
dust and water by mounting the Soft
touch type Electric panel. |
 |
|
|
| |
| |
 |
| TYPE |
GC-400 |
GC-510 |
GC-800 |
| POWER
SOURCE |
220V
1P AC 60Hz |
220V
3P AC 60Hz |
|
BLOWER |
VOLUME OF WIND
(m©ø/min) |
5
|
7
|
10 |
|
CONSTANT
PRESSURE (mmAq) |
80 |
250 |
230 |
|
MOTOR(Kw) |
0.323 |
0.75 |
0.75 |
| BAG
FILTER |
SIZE (WxL) |
435
x 600 |
|
QUANTITY (Poket) |
8 |
8 |
16 |
|
FILTRATION SIZE (m©÷) |
1.6 |
1.6 |
3.2 |
|
MATERIALS |
POLYESTER
NON -WOVEN FABRIC |
|
SHAKING DUST OFF |
HAND
SHAKING |
| GRINDER |
POWER
OUTPUT (W) |
400 |
510 |
800 |
| GRINDING
TYPE (¨ª X T) |
150x19 |
200x20 |
255x25 |

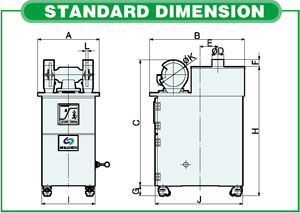

| SIZE |
A
(mm) |
490 |
520 |
680 |
| B
(mm) |
715 |
800 |
840 |
| C
(mm) |
1,090 |
1,147 |
1,238 |
| ¨ªD
(mm) |
75 |
100 |
125 |
| E
(mm) |
120 |
150 |
150 |
| F
(mm) |
60 |
60 |
60 |
| G
(mm) |
87 |
87 |
87 |
| H
(mm) |
1,071 |
1,091 |
1,141 |
| I
(mm) |
450 |
450 |
610 |
| J
(mm) |
670 |
740 |
760 |
| ¨ªK
(mm) |
150 |
200 |
255 |
| L
(mm) |
19 |
20 |
25 |
| CAPACITY
OF DUST BOX ( §¤ ) |
13 |
13 |
18 |
| ROUGH
WEIGHT (Kg) |
65 |
80 |
95 |
|
| |
|
|
| |
|
|
