CO₂Welding/MIG,
Collecting fume occurring as TIG welding |
| |
 |
 Ultra-small,
Ultra-light, Portable Fume Dust Collector
that is able to use by connecting with
CO₂Fume Torch.
It
has Hepa Filter that is able to collect
about 0.3㎛ sized particles around over
99.997%
Smell
Removal Function is added by combination
of activated carbon fiber mat and granular
activated carbon (FT-329, FT-429)
Compact
sizes can move easily and perform high-efficiency
even in limited area. |
 |
|
|
| |
| |
| |
 |
 |
| |
| SIZE |
FM-840 |

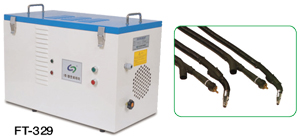

FT-329 |
FT-429 |
| POWER |
220V
1P , 220V/380V 3P 50Hz/60Hz |
|
BLOWER |
VOLUME
OF WIND (m³/min) |
2.7/2.3(Torch) |
3.0 |
4.1 |
| CONSTANT
PRESSURE (mmAq) |
2300 |
1750 |
2330 |
| MOTOR(kw) |
1.1 |
0.8 |
1.9 |
| FILTER
|
TYPE |
Media
Type |
1st:HEPA |
2nd:ACF |
| MATERIALS |
Hight
Efficiency |
HEPA,
ACF |
| EFFICIENCY |
99.997% |
99.997% |

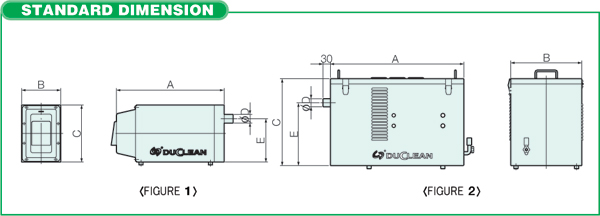

| SIZE |
A
(mm) |
550 |
638 |
| B
(mm) |
200 |
340 |
| C
(mm) |
290 |
415 |
| ØD
(mm) |
44 |
38 |
| E
(mm) |
220 |
300 |
| WEIGHT
(kg) |
10 |
55 |
60 |
| SOUNF
LEVEL (DB±2) |
73 |
65 |
68 |
| FIGURE |
FIGURE1 |
FIGURE2 |
|
| |
| |
|
|
| |
|
|
