 Laser
Processor
Plasma
Processor
Gouging
cast iron and cast steel
Welding,
processing severing metal and working
of making fume |
| |
 |
High
strength aluminum alloy turbo
impeller
Realized vibration-free and low-noise
as increasing absorption power
with decreasing idling weight
and starting load on account of
applying the domestic beginning
of aluminum alloy, and as working
with ultra-precision press mold
and electronic balancing.
Full
automatic filter cleaning makes
it possible continual operating
for 24 hours!
|
|
|
Continually operating for 24 hours
is owing to continuously shaking dust
attached at cartridge filter off by
automatic injection of pressed air to
internal cartridge filter through timer
built-in.
CONTROL
PANEL
Enhanced acknowledgement quality by
centralized intensive build-in type. |
|
|
| |
| |
| |
 |
 |
| TYPE |
FC-100 |
FC-200 |
FC-300 |
FC-500 |
FC-750 |
FC-1000 |
FC-1500 |
| POWER
SOURCE |
220V 1P AC,
220V/380V 3P 60Hz |
220 / 380V 3P AC 60Hz,
440V(Option) 50Hz(Option) |
|
BLO
WER
|
VOLUME OF WIND (m©ø/min) |
12 |
25
|
35 |
50 |
70
|
90 |
120 |
|
CONSTANT
PRESSURE (mmAq) |
230
|
240
|
250
|
260 |
| MOTOR(Kw) |
0.75 |
1.5 |
2.2 |
4.0 |
5.5 |
4.0
X 2 |
5.5
X 2 |
| FIL
TER
SI
ZE |
SIZE(WxL) |
Ø165
x 650L |
Ø165
x 800L |
Ø165
x 1000L |
|
QUANTITY (Poket) |
6 |
9 |
12 |
18 |
24 |
24 |
32 |
|
FILTRATION SIZE (m©÷) |
23.4 |
43.2 |
57.6 |
86.4 |
115.2 |
144 |
192 |
| FILTRATION
SPEED (m/min) |
0.51 |
0.58 |
0.61 |
0.58 |
0.61 |
0.63 |
0.63 |
|
MATERIALS |
POLYESTER |
|
NON-WOVEN FABRIC |
TYPE
OF AUTOMATICS AIR PULSE
|
| NUMBER
OF SOLENOID VALVES |
3 |
3 |
4 |
6 |
8 |
8 |
9 |
| VOLUME
OF AIR
CONSUMPTION (N§¤/min) |
20 |
20 |
35 |
40 |
60 |
60 |
70 |
| SI
ZE |
A
(mm) |
620 |
750 |
850 |
1,290 |
1,700 |
1,950 |
2,010 |
| B
(mm) |
620 |
750 |
750 |
900 |
900 |
1,000 |
1,250 |
| C
(mm) |
1,880 |
1,925 |
1,965 |
2,050 |
2,090 |
2,250 |
2,325 |
| ØD
(mm) |
150 |
200 |
200 |
250 |
300 |
350 |
400 |
| E
(mm) |
190 |
225 |
225 |
275 |
275 |
230 |
355 |
| F
(mm) |
420 |
600 |
600 |
575 |
700 |
875 |
910 |
| ØG
(mm) |
150 |
200 |
250 |
300 |
350 |
400 |
450 |
| H
(mm) |
128 |
128 |
128 |
160 |
160 |
160 |
160 |
|
CAPACITY OF DUST BOX (
l ) |
45 |
65 |
80 |
100 |
130 |
170 |
170 |
|
WEIGHT (
Kg ) |
210 |
280 |
350 |
460 |
510 |
850 |
1,150 |
|

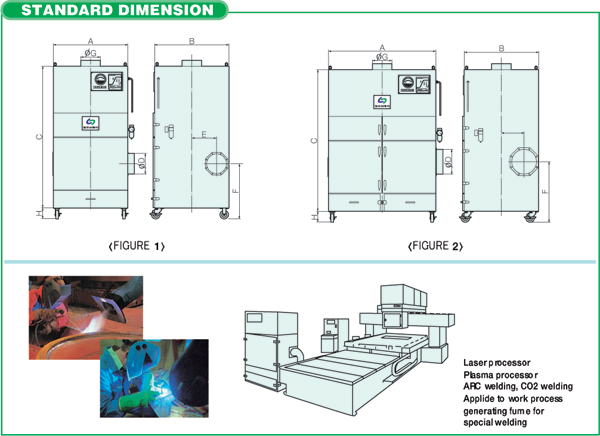

FIGURE
|
FIGURE
1 |
FIGURE
2 |
|
| |
| |
|
|
| |
|
|
