Applied to place not available to equip objective machine with HOOD and DUCT, it can rotate 360 degrees.
Wind quantity control available with attaching DAMPER to ARM HOOD
It is fixed to desirable location, moving without limit and vibration.

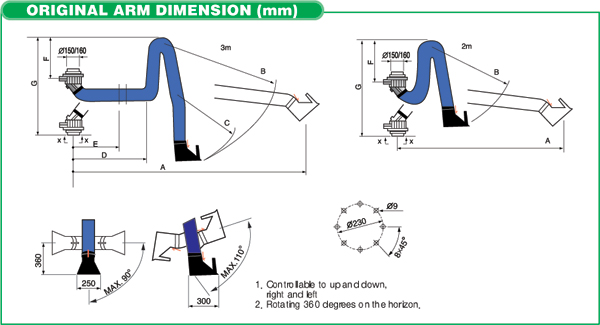

ARM STRUCTURE
- 360 degree swivel elbow.
- Support flange.
- Internal support
- Pre-set joints with wear discs, can be readjusted if required.
- Fiberglass-reinforced PVC hose, 160mm diam. Maximum operating temperature is 70 degrees C.
- Damper with positive seal.
- Oval polycarbonate hood, 250mm 300mm. Optional ligh package available.
- Counter flange for ventilation duct 150/ 160mm dia. Not required with fan.



.
2m
3m
4mH
4mV
A
2000
3000
4000
4000
B
1050
1050
1000
2100
C
1000
1000
D
1050
2000
930
E
710
1050
F
460
360
860
860
G
1000
1000
1500
1630
