| ARC welding, CO₂welding, MAG welding,
GOUGING, special welding etc. making
FUME work. ARC |
| |
 |
 ARM

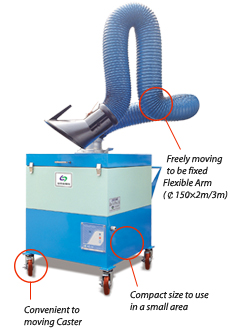

Using unrestricted moving FLEXIBLE ARM
, it can enhance health and efficiency
of worker due to absorbing FUME from
producing source. |
Strong
Power of Absorption
- Attached TURBO BLOWER for exclusive
use of FUME.
- High safety in adoption of anti-overload
circuit to prevent damage to MOTOR. |
 |
|
CONTROL
PANEL
Compact and Easy to use in adoption
of centralized intensive type built-in.
Silent
Operating
Minimized noise by regularly inducing
and spreading air-flow of BLOWER to
the exit of latticed shape.
Mobility
Easy to carry due to large wheels and
hand-carrier attached.
OPTION
- TWO ARMs attached and STAND types
are available according to condition
of working.

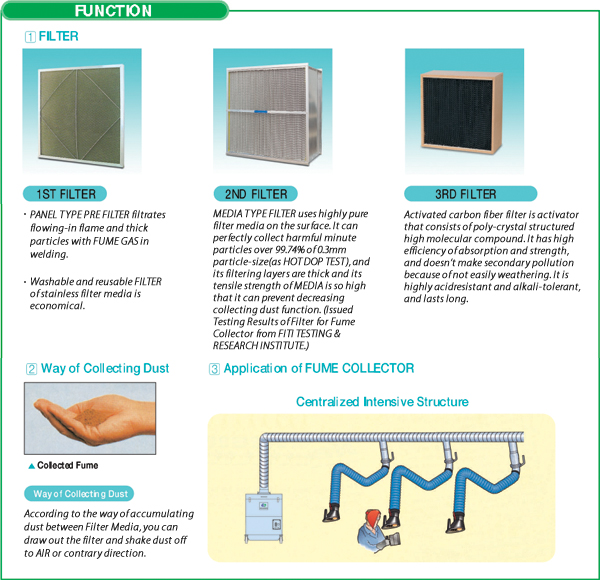

- The option for strong elimination
function of fume by activated carbon
fiber filter is available.
- No secondary pollution, preventing
dust of the floor at work place from
flying away by inducing the exit direction
upward.
- The Compact body, easy to carry, doesn
t need large space. |
|
|
| |
| |
| |
 |
| |
 |
 |
| |
| TYPE |
CH
- 2 |
CH
- 3 |
CH
- 5 |
|

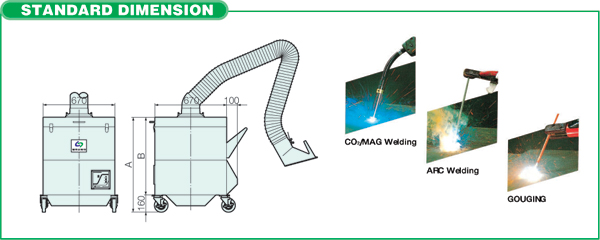

DIMENSION |
LENGTH (A) |
770mm |
770mm |
770mm |
|
WIDTH (B) |
670mm |
670mm |
670mm |
|
HEIGHT |
STANDARD (C) |
750mm |
790mm |
826mm |
| FILTER
(D) |
1050mm |
1090mm |
1126mm |
|
FAN MOTOR |
MOTOR (Kw) |
1.5KW
X 2P |
2.2KW
X 2P |
3.7KW
X 2P |
| POWER
SOURCE |
220V
1P AC,
220V/380V 3P 60Hz |
220/380V
3P AC 60Hz, 440V(Option), 50Hz |
| FLEXIBLE
ARM |
LENGTH
/ QUANTITY |
2m
x 1 SET |
3m
x 1 SET |
3m
x 2 SET
(For two people) |
| DIAMETER |
Ø150mm |
| FILTER |
FILTRATION
EFFICIENCY |
99.74% |
| FILTRATION
SIZE |
19.3m² |
| SHAPE |
MEDIA
TYPE CARTRIDGE |
| TURBO
FAN |
VOLUME
OF WIND (m³/min) |
25m³/min |
40m³/min |
60m³/min |
| CONSTANT
PRESSURE (mmAq) |
230mmAq |
| ROUGH
WEIGHT
(INCLUDING FILTER AND ARM) |
ABOUT
70kg |
ABOUT
74kg |
ABOUT
83kg |
|
| |
| |
|
|
| |
|
|
