 Structure
of minimized cause for dust explosion
APD SERIES adopts anti-static cartridge
filter and detached solenoid enclosure.
It is anti-dust explosive safe dust
collector that can fall off dust with
AIR PULSE, and prevent making flame
in dust collector by anti-dust explosive
MOTOR, exterior airtight anti-dust explosive
electric equipment box.
anti-dust
electric equipment BOX
Leakage of flame is prevented with SEAL
PACKING
anti-backfire
valve
In case of dust explosion in dust collector,
preventing fire from diffusing into
DUCT, it can protect workers from fire
storm.
anti-storm
diffusive hole
In case of dust explosion in dust collector,
power of explosion may burst the main
body of dust collector, and it may cost
many lives.
So APD SERIES can minimize the damage,
absorbing energy of explosion and then
inducing and discharging it backward
and upward. |
| |
 |
|
|
| |
| |
| |
 |
 |
| TYPE |
APD-
100 |
APD-
200 |
APD-
300 |
APD-
500 |
APD-
750 |
APD-
1000 |
APD-
1500 |
APD-
2000 |
APD-
3000 |
| POWER SOURCE |
220 / 380V
3P AC 60Hz , 440V(Option), 50Hz(Option) |
B
L
O
W
E
R |
VOLUME OF
WIND (m©ø/min) |
12 |
25 |
40 |
60 |
80 |
100 |
150 |
200 |
300 |
CONSTANT
PRESSURE (mmAq) |
230 |
250 |
260 |
| MOTOR(Kw) |
0.75 |
1.5 |
2.2 |
3.7 |
5.5 |
3.7 x 2 |
5.5 x 2 |
75 x 2 |
11 x 2 |
F
I
L
T
E
R |
SIZE(WxL) |
¨ª145 x 500L
x 75 |
¨ª145x800Lx75 |
¨ª165x800Lx65 |
| QUANTITY(Poket) |
4 |
6 |
9 |
12 |
18 |
24 |
24 |
24 |
32 |
FILTRATION
SIZE(m©÷) |
7.5 |
11.25 |
16.87 |
22.5 |
33.75 |
45 |
72 |
100 |
133.2 |
| MATERIALS |
POLYESTER |
| SHAKING DUST OFF |
TYPE OF AUTOMATICS
AIR PULSE |
NUMBER OF
SOLENOID VALVES |
2 |
3 |
3 |
4 |
6 |
8 |
8 |
8 |
8 |
VOLUME OF
AIR
CONSUMPTION (Nl/min) |
20 |
20 |
20 |
35 |
40 |
60 |
60 |
80 |
100 |
S
I
Z
E |
A(mm) |
520 |
620 |
750 |
850 |
1,290 |
1,700 |
1,700 |
1,950 |
2,010 |
| B(mm) |
520 |
620 |
750 |
750 |
900 |
900 |
950 |
1,000 |
1,250 |
| C(mm) |
1,410 |
1,580 |
1,625 |
1,665 |
1,830 |
1,715 |
2,090 |
2,140 |
2,270 |
| ¨ªD(mm) |
150 |
200 |
250 |
250 |
300 |
350 |
400 |
500 |
600 |
| E(mm) |
165 |
190 |
225 |
225 |
275 |
250 |
250 |
230 |
305 |
| F(mm) |
500 |
420 |
600 |
600 |
575 |
550 |
700 |
875 |
875 |
| ¨ªG(mm) |
150 |
200 |
300 |
300 |
350 |
400 |
450 |
550 |
650 |
| H(mm) |
128 |
128 |
128 |
128 |
160 |
160 |
160 |
160 |
160 |
| I(mm) |
100 |
150 |
200 |
200 |
200 |
200 |
200 |
200 |
250 |
CAPACITY OF
DUST BOX(l) |
16 |
45 |
65 |
80 |
100 |
130 |
130 |
170 |
170 |
| ROUGH WEIGHT(
Kg ) |
180 |
240 |
350 |
430 |
560 |
650 |
820 |
1,200 |
1,650 |

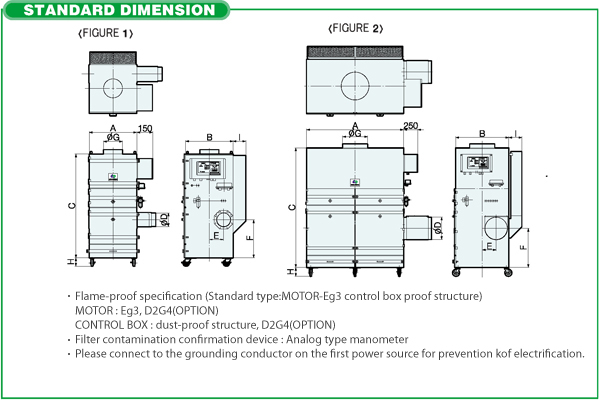

| FIGURE |
FIGURE1 |
FIGURE2 |
|
| |
| |
|
|
| |
|
|
