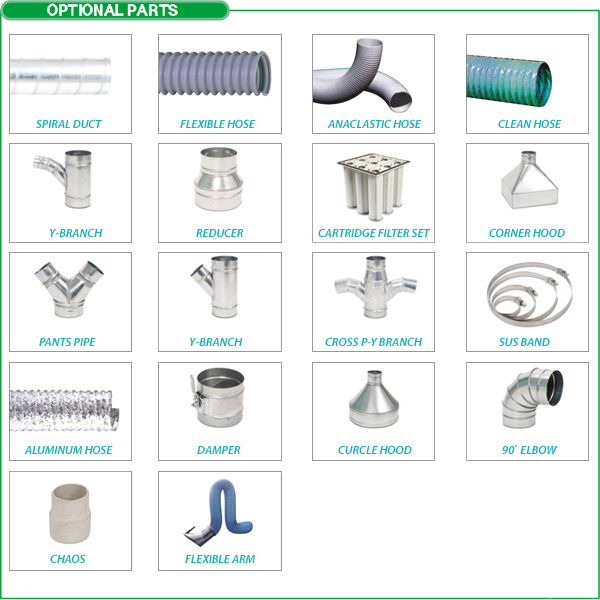

 FILTER
- Available to collect minute dust due
to large face of filter by adopting
cartridge type.
- Easily changeable compact structure
using unitary filter.
CONTROL
PANEL
Enhanced acknowledgement quality by
centralized intensive built-in type.
MANOMETER
To easily grasp the situation of dust
accumulation makes easily knowing the
time to change.
CONTINUAL
WORKING
Possible to work for 24hours as automatically
shaking dust off in working of dust
collector.

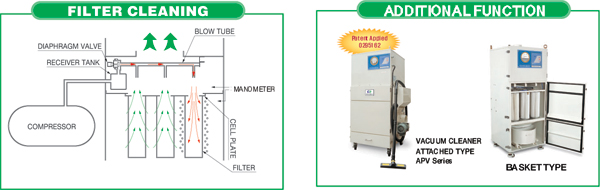

FILTER
CLEANING
High efficiency of shaking even minute
dust off, attached at cartridge filter,
as spreading air surrounded by automatic
injection of pressed air through BLOW
TUBE in operating of PULSE TIMER.
TURBO
BLOWER
Realized vibration-free and low-noise
as increasing absorptin power with decreasing
idling weight and starting load on account
of applying the domestic beginning of
aluminum alloy , and as working with
ultra-precision press mold and electronic
balancing.
¥ÄP
CONTROLLER
By sensing a pressure of the collecting
portion itself and a pressure which
gone through the colllecting portion,
Start to clean the fillter by air pulse's
operation if there is happened a fixed
(standard) pressure over. The life cycle
of filter can be prolonged epochally
and the noise is minimized by the cleaning
the filter. |
|
|
| |
| |
| |
 |
| |
 |
| |
 |
 |
| TYPE |
AP-
100 |
AP-
200 |
APK-
200 |
AP-
300 |
AP-
500 |
AP-
750 |
AP-
1000 |
AP-
1500 |
AP-
2000 |
AP-
3000 |
| POWER SOURCE |
220V 1P, 220/380V
3P 60Hz,
440V(Option), 50Hz(Option) |
220V / 380V
3P 60Hz, 440V(Option), 50Hz(Option) |
B
L
O
W
E
R |
VOLUME OF
WIND (m©ø/min) |
12 |
25 |
25 |
40 |
60 |
80 |
100 |
150 |
200 |
300 |
CONSTANT
PRESSURE (mmAq) |
230 |
250 |
260 |
| MOTOR(Kw) |
0.75 |
1.5 |
1.5 |
2.2 |
4.0 |
5.5 |
4.0 x 2set |
5.5 x 2set |
7.5 x 2set |
11 x 2set |
B
A
G F
I
L
T
E
R |
SIZE(WxL) |
¨ª145 x 500L
x 75 |
¨ª145x
400Lx75 |
¨ª145 x 500L
x 75 |
¨ª145 x
800L |
¨ª165x800Lx65 |
| QUANTITY(Poket) |
4 |
6 |
9 |
9 |
12 |
18 |
24 |
24 |
24 |
32 |
FILTRATION
SIZE(m©÷) |
7.5 |
11.25 |
13.5 |
16.87 |
22.5 |
33.75 |
45 |
72 |
100 |
133.2 |
Filtration Speed
(m/min) |
1.6 |
2.2 |
1.9 |
2.4 |
2.7 |
2.4 |
2.2 |
2.1 |
2.0 |
2.3 |
| MATERIALS |
POLYESTER |
| SHAKING DUST OFF |
TYPE OF AUTOMATICS
AIR PULSE |
NUMBER OF
SOLENOID VALVES |
2 |
3 |
3 |
3 |
4 |
6 |
8 |
8 |
8 |
8 |
VOLUME OF
AIR
CONSUMPTION (Nl/min) |
20 |
20 |
20 |
20 |
35 |
40 |
60 |
60 |
80 |
100 |
S
I
Z
E |
A(mm) |
520 |
620 |
620 |
750 |
850 |
1,290 |
1,700 |
1,700 |
1,950 |
2,010 |
| B(mm) |
520 |
620 |
620 |
750 |
750 |
900 |
900 |
950 |
1,000 |
1,250 |
| C(mm) |
1,410 |
1,580 |
1,455 |
1,625 |
1,665 |
1,830 |
1,715 |
2,090 |
2,195 |
2,270 |
| ¨ªD(mm) |
150 |
200 |
125 |
250 |
250 |
300 |
350 |
400 |
500 |
600 |
| E(mm) |
165 |
190 |
190 |
225 |
225 |
275 |
250 |
250 |
230 |
305 |
| F(mm) |
500 |
420 |
605 |
600 |
600 |
575 |
550 |
700 |
710 |
710 |
| ¨ªG(mm) |
150 |
500 |
125 |
300 |
300 |
350 |
400 |
450 |
550 |
650 |
| H(mm) |
128 |
128 |
82 |
128 |
128 |
160 |
160 |
160 |
160 |
160 |
CAPACITY OF
DUST BOX(l) |
16 |
45 |
20 |
65 |
80 |
100 |
130 |
130 |
170 |
170 |
| ROUGH WEIGHT(
Kg ) |
165 |
200 |
210 |
300 |
380 |
490 |
580 |
720 |
940 |
1,450 |

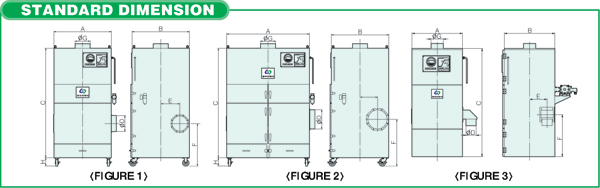

| FIGURE |
FIGURE1 |
FIGURE3 |
FIGURE1 |
FIGURE2 |
|
| |
| |
|
|
| |
|
|
